fischer anchors

The fischer sleeve anchor FSL is an internal threaded anchor made from zinc-plated steel. Thanks to its high shear load resistance, the FSL is ideal for the anchoring of structural and temporary loads in non-cracked concrete. The variants with screws and hexagonal heads enable use for anchorings with no bolt projection. The sleeve anchor is installed in a time-saving push-through installation. During the installation, the cone is pulled into the expansion sleeve and expands it against the drill hole wall. The anchor is dismantled by means of a surface-flush removal in the case of temporary anchors.

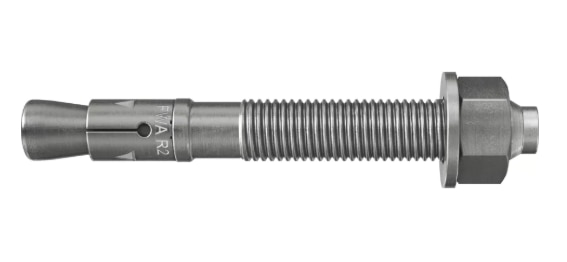

The fischer bolt anchor FWA R2 is an economical solution for all applications where an approved fixation is not required. The bolt anchor can be used with two anchorage depths. The standard anchorage depth guarantees a high load-bearing capacity. This means that fewer fixing points and smaller anchor plates are required. The reduced anchorage depth reduces the drill hole depth. This saves time during the installation and increases flexibility.
